Tray fit & spacing
Share tray length, width, rim profile and loaded product height. State your required runner spacing and usable levels.
Home / Bakery Trolleys & Racks / Z Nesting Oven Rack
BAKERY TROLLEYS & RACKS
Z Nesting
Oven Rack
A stainless steel rack for bakery tray handling, with a nesting frame layout and a specification you can adapt to your production requirements.
Planning a custom stainless steel rack? Start with the dimensions below, then share your tray size, oven interface and loading requirements so we can review the configuration.

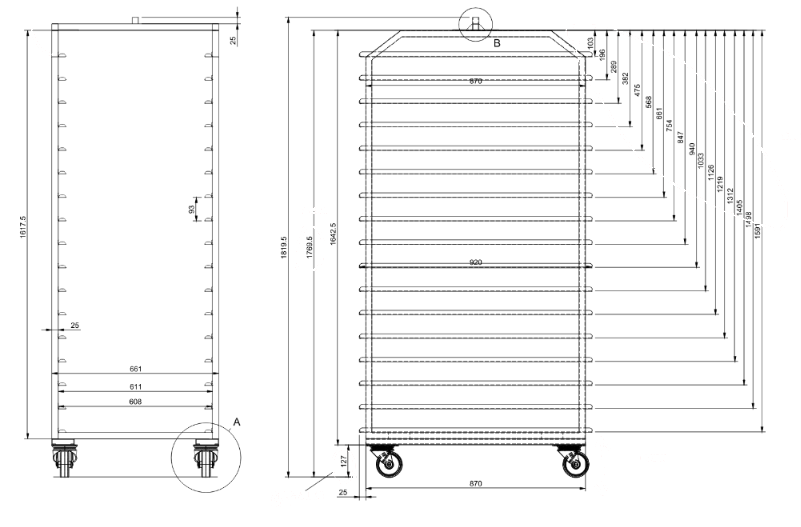

- Overall dimensions · W × D × H
- 920 × 661 × 1819.5 mm
- Runner spacing
- 93 mm
Oven compatibility and the final configuration are confirmed before quotation.
PRODUCT DETAILS
A nesting layout for bakery workflows.
This Z nesting oven rack combines an open stainless steel frame, parallel tray runners and a mobile castor base. The open sides provide access to the tray positions and make the frame easy to inspect during routine cleaning.
The nesting layout is intended to let empty racks fit together when not in use. The space needed for a group of racks depends on the final frame geometry; confirm nesting depth and storage clearance for your planned quantity. Oven use requires a separate check of the rack interface, castors and operating temperature.
DIMENSIONS & CONSTRUCTION
Product specifications
| Product type | Z nesting oven rack |
|---|---|
| Frame material | Stainless steel; grade to be confirmed |
| Overall width | 920 mm |
| Overall depth | 661 mm |
| Overall height | 1819.5 mm |
| Runner spacing | 93 mm |
| Tray dimensions & usable levels | Confirm for the selected configuration |
| Load capacity & temperature range | Confirm for the intended application |
| Castors & oven interface | Specify with your oven and handling requirements |
BUILT AROUND YOUR REQUIREMENTS
Specify your custom oven rack
Use this model as a starting point for a custom oven rack inquiry. Send a drawing or describe the changes you need; feasibility and the final specification will be reviewed before quotation.
BUYER QUESTIONS
Before you order
What are the dimensions of this Z nesting oven rack?
The selected overall dimensions are 920 mm wide × 661 mm deep × 1819.5 mm high, with 93 mm runner spacing. Check these dimensions against your oven opening, trays and handling route.
Can I request a custom stainless steel rack?
Yes. Send your proposed dimensions, stainless steel grade, tray layout and loading requirements for review. Available changes, minimum order quantity and lead time are confirmed with the quotation.
Will this rack fit my oven?
Compatibility cannot be determined from the overall dimensions alone. Provide the oven model, interface drawing and operating temperature so the frame, top connection and castors can be checked.
Are the baking moulds in the photograph included?
The moulds illustrate tray handling. Please specify whether your inquiry is for the rack alone or for a rack with matching bakeware; the supply scope will be confirmed in the quotation.
YOUR NEXT STEP
Tell us what your rack needs to do.
Include your tray size, quantity, oven model and any changes to the dimensions. You can copy the starting specification below into the website inquiry builder.
Open inquiry builder ↗
Preview: inquiry details are prepared locally and are not sent.
