Pan fit & clearance
Confirm the 18 × 26 inch pan profile, rim dimensions and loaded height. Tell us if you need a different runner pitch or pan capacity.
Home / Bakery Trolleys & Racks / 20 Pan Z Frame Rack
20 PANS · 18 × 26 INCHES
Custom Bakery Rack
20 Pan Z Frame

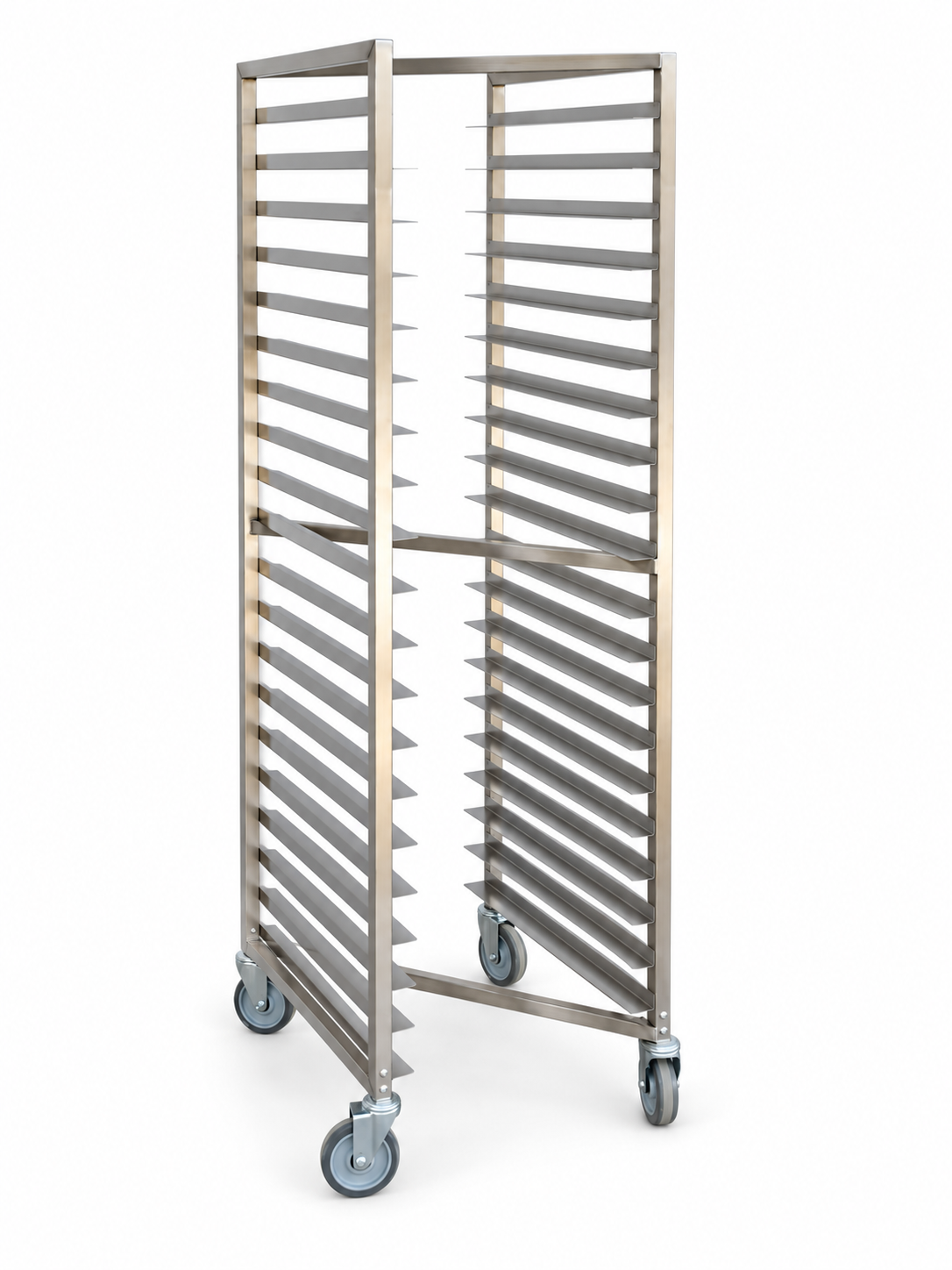

A stainless steel rack for 20 full-size sheet pans, available in SS304 or SS201 with a total rack load capacity of 300 kg. Its Z frame layout supports nesting storage when empty.
This custom bakery rack accommodates 18 × 26 inch sheet pans. Use the shown configuration as your starting point, then specify tray clearance, material grade and caster requirements for your bakery.
- Pan capacity
- 20 sheet pans
- Compatible pan format
- 18 × 26 inches

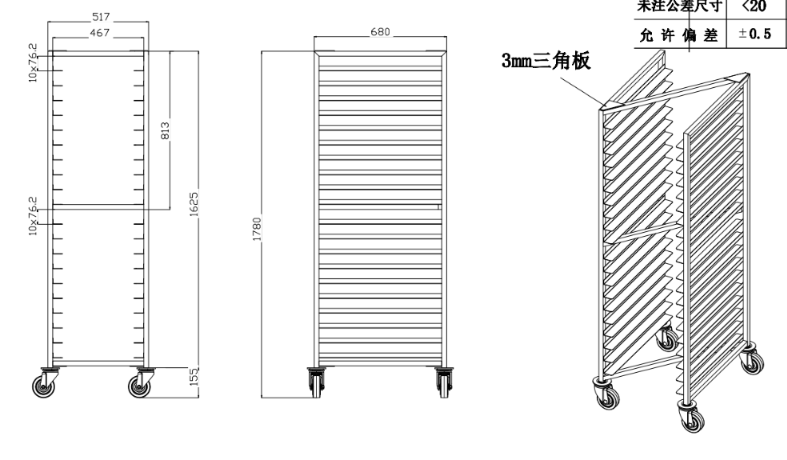

- Runner pitch shown in drawing
- 76.2 mm · 3 inches
FULL-SIZE SHEET PAN HANDLING
A 20 pan rack for bakery workflows
Keep full-size pans together during preparation, cooling and staging. This 20 pan rack uses paired runners to hold one 18 × 26 inch sheet pan at each position. The open frame gives access to the pans and a clear view of the contents.
The Z frame rack layout allows empty units to nest together for storage. Confirm the space required for your planned number of racks and the clearance along your handling route. Nesting dimensions depend on the final frame and caster configuration.
PRODUCT DIMENSIONS
Rack specifications
| Product type | Z frame nesting bakery rack |
|---|---|
| Capacity | 20 sheet pans |
| Pan size | 18 × 26 inches (457.2 × 660.4 mm) |
| Frame material | SS304 / SS201 stainless steel options |
| Overall height | 1780 mm |
| Horizontal dimensions shown | 680 × 517 mm |
| Runner pitch | 76.2 mm (3 inches), as drawn |
| Reinforcement plate | 3 mm, as drawn |
| Total rack load capacity | 300 kg |
| Caster size | Confirm for the selected configuration |
| Shelf / runner thickness | To be confirmed |
Runner pitch is not the usable clearance above a loaded pan. Confirm pan depth and product height before ordering.
SPECIFY YOUR CONFIGURATION
Custom nesting bakery racks
For custom nesting bakery racks, start with your pan format and daily handling needs. Send the number of racks, intended use and any changes required for this 20-pan configuration. Proposed changes are reviewed before quotation.
APPLICATION CHECK
Need a nesting oven rack?
If you are specifying a nesting oven rack, provide the oven make, model, operating temperature and rack interface drawing. The shown stainless steel frame and wheels must be checked for your oven application.
Pan capacity and external dimensions alone do not establish oven compatibility. We will review the required configuration before quotation.
Explore matching commercial bakeware ↗BUYER QUESTIONS
Before choosing your rack
How many 18 × 26 inch pans does this rack hold?
The specified capacity is 20 sheet pans, with one full-size 18 × 26 inch pan per position. Check loaded product height against the available clearance.
Can this Z frame rack nest with other racks?
The nesting layout is intended for storage of matching empty racks. Confirm the nesting depth, caster clearance and final configuration before planning your storage area.
Can I customize the stainless steel rack?
Yes. Send your requested material grade, frame dimensions, runner layout, wheel requirements and quantity for review. The specification and available changes are confirmed with the quotation.
Can I use the rack inside an oven?
Oven use requires confirmed temperature suitability, wheel selection and interface compatibility. Include these details when requesting a nesting oven rack.
CUSTOM BAKERY RACK INQUIRY
Build around your pans.
Start with the 20-pan configuration below and add the changes you need. Include quantity, stainless steel grade and operating conditions.
Open inquiry builder ↗
Preview: inquiry details are prepared locally and are not sent.
